STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

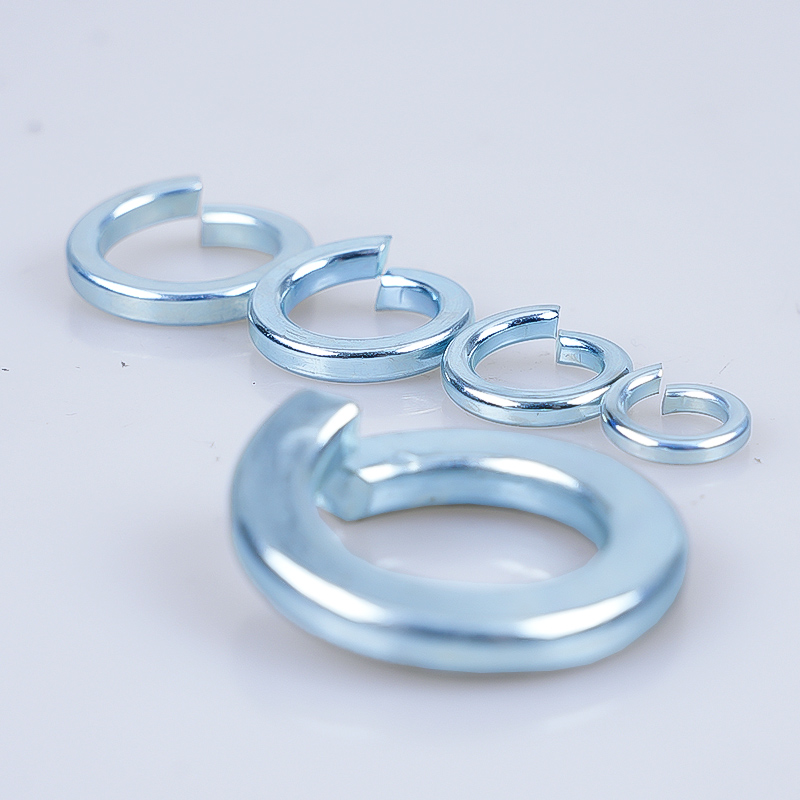

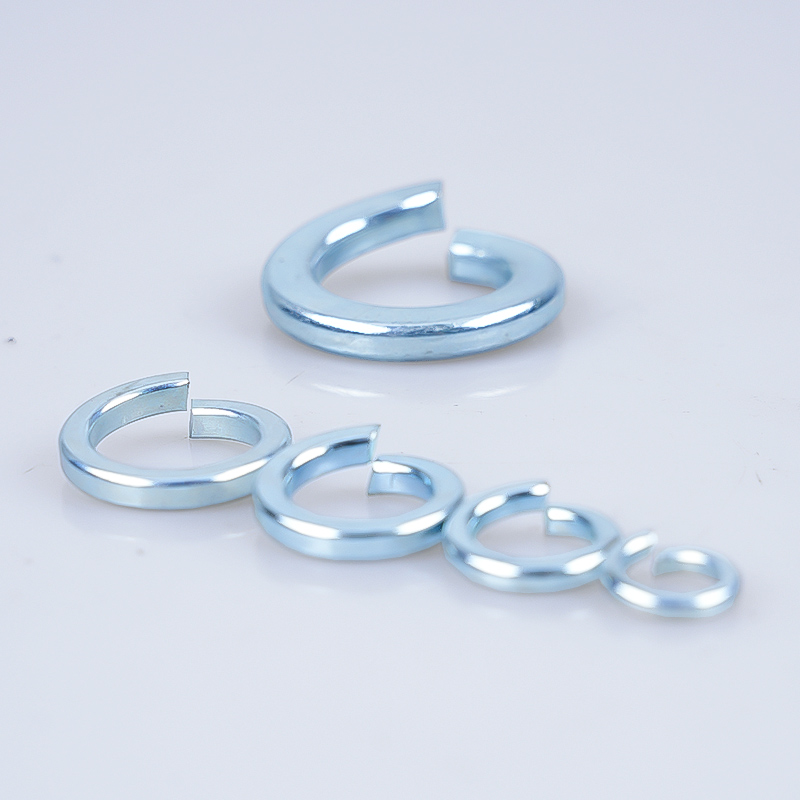

STANDARD : DIN 7980
SIZE : M2.5 - M30
MATERIAL : SPRING STEEL
FINISH : ZINC PLATED, ZINC FLAKE, HDG
PACKAGING : BULK PACK | SMALL BOXED
• Square profile.
• Split at one point and bent into a helical shape.
• Creates a spring force between fasteners head and base item.
• Bright zinc plated for increased corrosion resistance.
• Axial flexibility prevents loosening due to vibrations.
|
nominal |
Φ3 |
Φ3.5 |
Φ4 |
Φ5 |
Φ6 |
Φ8 |
Φ10 |
Φ12 |
Φ14 |
Φ16 |
||
|
d |
min. |
|
3.1 |
3.6 |
4.1 |
5.1 |
6.1 |
8.1 |
10.2 |
12.2 |
14.2 |
16.2 |
|
max. |
|
3.4 |
3.9 |
4.4 |
5.4 |
6.5 |
8.5 |
10.7 |
12.7 |
14.7 |
17 |
|
|
h |
nominal |
|
1 |
1 |
1.2 |
1.6 |
1.6 |
2 |
2.5 |
2.5 |
3 |
3.5 |
|
max. |
|
1.1 |
1.1 |
1.3 |
1.7 |
1.7 |
2.1 |
2.65 |
2.65 |
3.2 |
3.7 |
|
|
min. |
|
0.9 |
0.9 |
1.1 |
1.5 |
1.5 |
1.9 |
2.35 |
2.35 |
2.8 |
3.3 |
|
|
n |
nominal |
|
1 |
1 |
1.2 |
1.6 |
1.6 |
2 |
2.5 |
2.5 |
3 |
3.5 |
|
max. |
|
1.1 |
1.1 |
1.3 |
1.7 |
1.7 |
2.1 |
2.65 |
2.65 |
3.2 |
3.7 |
|
|
min. |
|
0.9 |
0.9 |
1.1 |
1.5 |
1.5 |
1.9 |
2.35 |
2.35 |
2.8 |
3.3 |
|
|
H |
min. |
|
2 |
2 |
2.4 |
3.2 |
3.2 |
4 |
5 |
5 |
6 |
7 |
|
max. |
|
2.36 |
2.36 |
2.83 |
3.78 |
3.78 |
4.72 |
5.9 |
5.9 |
7.1 |
8.25 |
|
|
applicable thread |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
||
|
kg |
0.105 |
0.114 |
0.195 |
0.37 |
0.425 |
1.06 |
1.96 |
2.28 |
3.8 |
5.94 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
nominal dia. |
Φ18 |
Φ20 |
Φ22 |
Φ24 |
Φ27 |
Φ30 |
Φ33 |
Φ36 |
Φ42 |
Φ48 |
||
|
d |
min. |
|
18.2 |
20.2 |
22.5 |
24.5 |
27.5 |
30.5 |
33.5 |
36.5 |
42.5 |
49 |
|
max. |
|
19 |
21.2 |
23.5 |
25.5 |
28.5 |
31.7 |
34.7 |
37.7 |
43.7 |
50.5 |
|
|
h |
nominal |
|
3.5 |
4.5 |
4.5 |
5 |
5 |
6 |
6 |
7 |
8 |
8 |
|
max. |
|
3.7 |
4.7 |
4.7 |
5.2 |
5.2 |
6.2 |
6.2 |
7.25 |
8.25 |
8.25 |
|
|
min. |
|
3.3 |
4.3 |
4.3 |
4.8 |
4.8 |
5.8 |
5.8 |
6.75 |
7.75 |
7.75 |
|
|
n |
nominal |
|
3.5 |
4.5 |
4.5 |
5 |
5 |
6 |
6 |
7 |
8 |
8 |
|
max. |
|
3.7 |
4.7 |
4.7 |
5.2 |
5.2 |
6.2 |
6.2 |
7.25 |
8.25 |
8.25 |
|
|
min. |
|
3.3 |
4.3 |
4.3 |
4.8 |
4.8 |
5.8 |
5.8 |
6.75 |
7.75 |
7.75 |
|
|
H |
min. |
|
7 |
9 |
9 |
10 |
10 |
12 |
12 |
14 |
16 |
16 |
|
max. |
|
8.25 |
10.6 |
10.6 |
11.8 |
11.8 |
14.2 |
14.2 |
16.5 |
18.9 |
18.9 |
|
|
applicable thread |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M42 |
M48 |
||
|
kg |
6.6 |
12.3 |
13.6 |
18.1 |
20.6 |
32 |
35 |
52.5 |
80 |
90 |
||
