STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
SIZE : DIA 3.2MM TO 6.4MM LENGTH 10MM TO 35MM
MATERIAL : BODY:ALUMINUM;MANDREL:CARBON STEEL
FINISH : BODY:POLISHED;MANDREL:ELECTROPLATE
PACKAGING : BULK PACK | SMALL BOXED

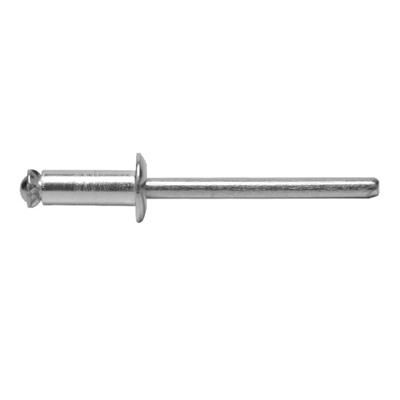

The”cracked” tail molding makes it to be ideally used for riveting of metal and wood, sheets or low-density plastics.
The large pressure bearing surface is extended to blind hole which provides the high mandrel retaining force.
Ideal replacements of the wood screw or self-tapping screw.
|

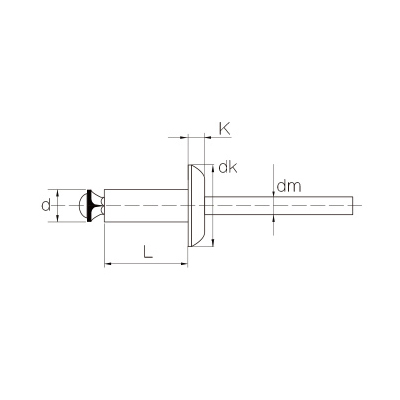

Diameter |
Grip Range |
Drill Diameter |
L |
Dk |
K |
Dm |
Shear Force |
Tensile Force |
|
|
mm |
Min |
Max |
mm |
+1.0/-0.0 |
Max |
Max |
Max |
(KN Nom) |
(KN Nom) |
|
3.2mm (1/8″) |
1.0 |
5.0 |
3.4-3.5 |
10.0 |
6.7 |
1.3 |
2.0 |
0.5 |
0.7 |
|
3.0 |
7.0 |
12.0 |
|||||||
|
5.0 |
9.0 |
14.0 |
|||||||
|
7.0 |
9.0 |
16.0 |
|||||||
|
9.0 |
13.0 |
18.0 |
|||||||
|
3.2mm (1/8″) |
1.0 |
5.0 |
3.4-3.5 |
10.0 |
9.8 |
2.0 |
2.0 |
0.5 |
0.7 |
|
3.0 |
7.0 |
12.0 |
|||||||
|
5.0 |
9.0 |
14.0 |
|||||||
|
7.0 |
9.0 |
16.0 |
|||||||
|
9.0 |
13.0 |
18.0 |
|||||||
|
4.0mm (5/32″) |
1.5 |
4.5 |
4.2-4.4 |
10.0 |
8.4 |
1.7 |
2.4 |
0.85 |
1.0 |
|
3.0 |
6.5 |
12.0 |
|||||||
|
5.0 |
8.5 |
14.0 |
|||||||
|
7.0 |
10.5 |
16.0 |
|||||||
|
9.0 |
12.5 |
18.0 |
|||||||
|
11.0 |
14.5 |
20.0 |
|||||||
|
4.0mm (5/32″) |
1.5 |
4.5 |
4.2-4.4 |
10.0 |
12.5 |
2.2 |
2.4 |
0.85 |
1.0 |
|
3.0 |
6.5 |
12.0 |
|||||||
|
5.0 |
8.5 |
14.0 |
|||||||
|
7.0 |
10.5 |
16.0 |
|||||||
|
9.0 |
12.5 |
18.0 |
|||||||
|
11.0 |
14.5 |
20.0 |
|||||||
|
4.8mm (3/16″) |
1.5 |
4.5 |
5.25-5.45 |
10.0 |
10.1 |
2.0 |
2.9 |
1.7 |
1.7 |
|
2.0 |
6.0 |
12.0 |
|||||||
|
3.0 |
9.0 |
15.0 |
|||||||
|
5.0 |
11.0 |
18.0 |
|||||||
|
8.0 |
15.0 |
21.0 |
|||||||
|
12.0 |
19.0 |
25.0 |
|||||||
|
14.0 |
21.0 |
27.0 |
|||||||
|
16.0 |
24.0 |
30.0 |
|||||||
|
20.0 |
28.0 |
35.0 |
|||||||
|
4.8mm (3/16″) |
1.5 |
4.5 |
5.25-5.45 |
10.0 |
16.5 |
2.5 |
2.9 |
1.7 |
1.7 |
|
2.0 |
6.0 |
12.0 |
|||||||
|
3.0 |
9.0 |
15.0 |
|||||||
|
5.0 |
11.0 |
18.0 |
|||||||
|
8.0 |
15.0 |
21.0 |
|||||||
|
12.0 |
19.0 |
25.0 |
|||||||
|
14.0 |
21.0 |
27.0 |
|||||||
|
16.0 |
24.0 |
30.0 |
|||||||
|
20.0 |
28.0 |
35.0 |
|||||||
|
6.4mm (1/4″) |
1.5 |
4.5 |
6.6-6.8 |
12.0 |
13.4 |
2.7 |
4.1 |
3.4 |
2.9 |
|
3.0 |
6.5 |
15.0 |
|||||||
|
5.0 |
9.5 |
18.0 |
|||||||
|
7.0 |
12.5 |
21.0 |
|||||||
|
9.0 |
17.0 |
25.0 |
|||||||
