STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 7981, ISO 7049
SIZE : ST2.2 - ST6.3, LENGTH -4.5 - 50MM
MATERIAL : CARBON STEEL,STAINLESS STEEL
FINISH : ZINC PLATED(DE-EMBRITTLEMENT)
PACKAGING : BULK PACK | SMALL BOXED

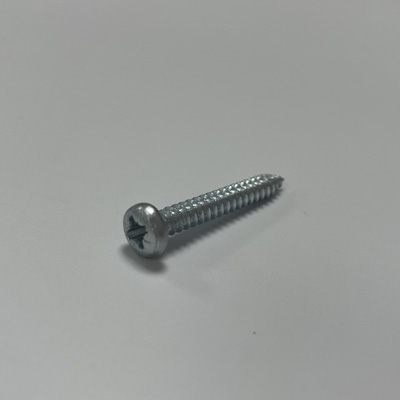

• Pan Head Self Tapping Screws DIN 7981
•Standard:DIN 7981, ISO 7049
•Size:-ST2.2 to ST6.3, Lenght -4.5 to 50mm
• Material: Carbon Steel.Stainless Steel
• Finish: Zinc Plated
•A type of screw which cuts its own thread into a pre-drilled surface (sheet metal or plastic, for example) and gives grip, therefore not requiring to be tightened from the other end. Ideal where only one side can be accessed. Generally used to attach a component to a surface.
Pan head style.
AB (sharp) point.
Conforms to DIN 7981
Bright Zinc Plate (BZP) finish offers resistance to corrosion.
|
d1 |
d2 max. |
k max. |
Recess no. |
|
2.9mm (No.4) |
5.6 |
2.2 |
1 |
|
3.5mm (No.6) |
6.9 |
2.6 |
2 |
|
4.2mm (No.8) |
8.2 |
3.05 |
2 |
|
4.8mm (No.10) |
9.5 |
3.55 |
2 |
|
5.5mm (No.12) |
10.8 |
3.95 |
3 |
|
6.3mm (No.14) |
12.5 |
4.55 |
3 |
