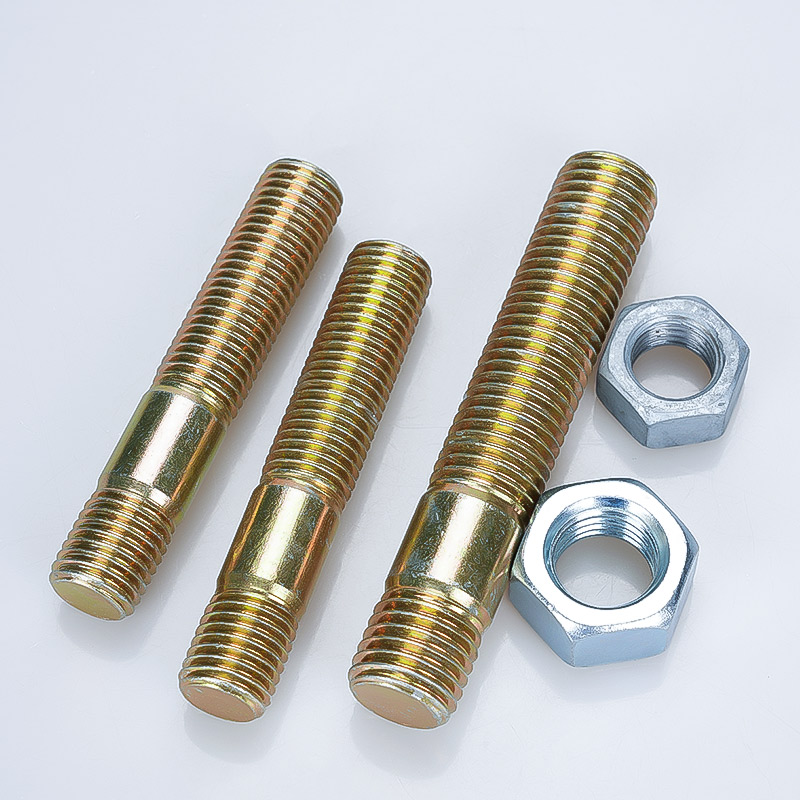

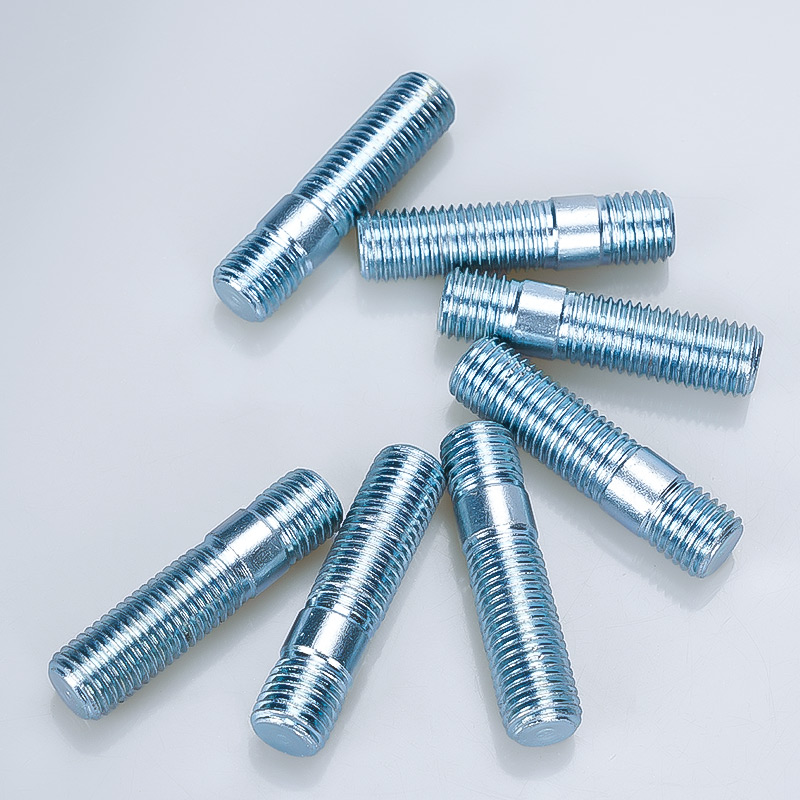

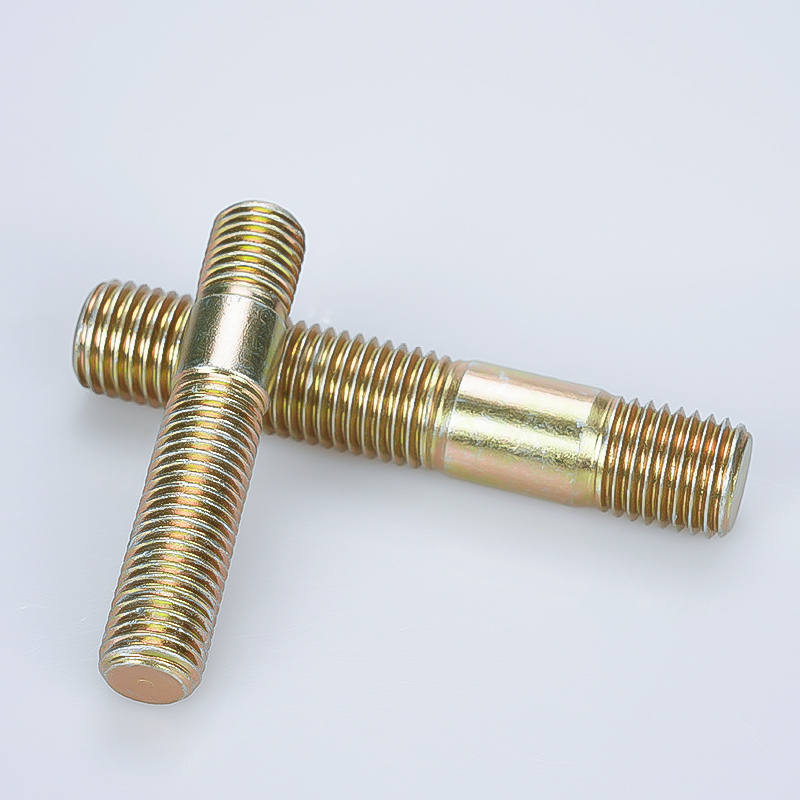

High Tensile Studs DIN 938

STANDARD : DIN 938

SIZE : M3 TO M52 LENGTH 6 TO 200MM

MATERIAL : CARBON STEEL,STAINLESS STEEL,BRASS

FINISH : SELF COLOUR,ZINC PLATED,HDG,DACROMET

PACKAGING : BULK PACK | SMALL BOXED

Description Specification Related Products Form

Description



• High Tensile Stud DIN 938



• Material: Carbon Steel,Stainless Steel,Brass



• Finish: Self Colour,Zinc Plated,HDG, Dacromet etc

Specification



Thread Dia

M3

M4

M5

M6

(M7)

M8

M10

M12

(M14)

M16

(M18)

M20

d

P

Pitch

Coarse

0.5

0.7

0.8

1

1

1.25

1.5

1.75

2

2

2.5

2.5

Fine1

–

–

–

–

–

1

1.25

1.25

1.5

1.5

1.5

1.5

Fine2

–

–

–

–

–

–

–

1.5

–

–

–

–

b1

3

4

5

6

7

8

10

12

14

16

18

20

b

L≤125

12

14

16

18

20

22

26

30

34

38

42

46

125＜L≤200

18

20

22

24

26

28

32

36

40

44

48

52

L＞200

–

–

–

–

–

–

45

49

53

57

61

65

ds

Max.

3

4

5

6

7

8

10

12

14

16

18

20

Min.

2.86

3.82

4.82

5.82

6.78

7.78

9.78

11.73

13.73

15.73

17.73

19.67

x1

1.25

1.75

2

2.5

2.5

3.2

3.8

4.3

5

5

6.3

6.3

x2

0.7

0.7

0.9

1

1.25

1.6

1.9

2.2

2.5

2.5

3.2

3.2

kg

–

–

–

–

–

–

–

–

–

–

–

–

Thread Dia

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

d

P

Pitch

Coarse

2.5

3

3

3.5

3.5

4

4

4.5

4.5

5

5

Fine1

1.5

2

2

2

2

3

3

3

3

3

3

Fine2

–

–

–

–

–

–

–

–

–

–

–

b1

22

24

25

30

32

35

38

42

45

48

52

b

L≤125

50

54

60

66

72

78

84

90

96

102

110

125＜L≤200

56

60

66

72

78

84

90

96

102

108

116

L＞200

69

73

79

85

91

97

103

109

115

121

129

ds

Max.

22

24

27

30

33

36

39

42

45

48

52

Min.

21.67

23.67

26.67

29.67

32.61

35.61

39.61

41.61

44.61

47.61

51.54

x1

6.3

7.5

7.5

9

9

10

10

11

11

12.5

12.5

x2

3.2

3.8

3.8

4.5

4.5

5

5

5.5

5.5

6.3

6.3
