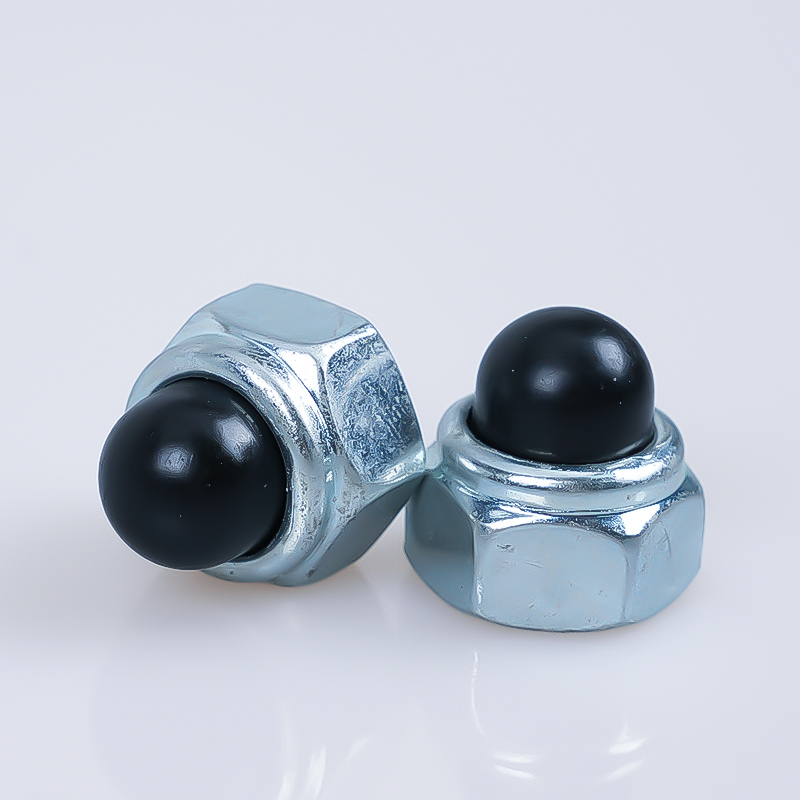

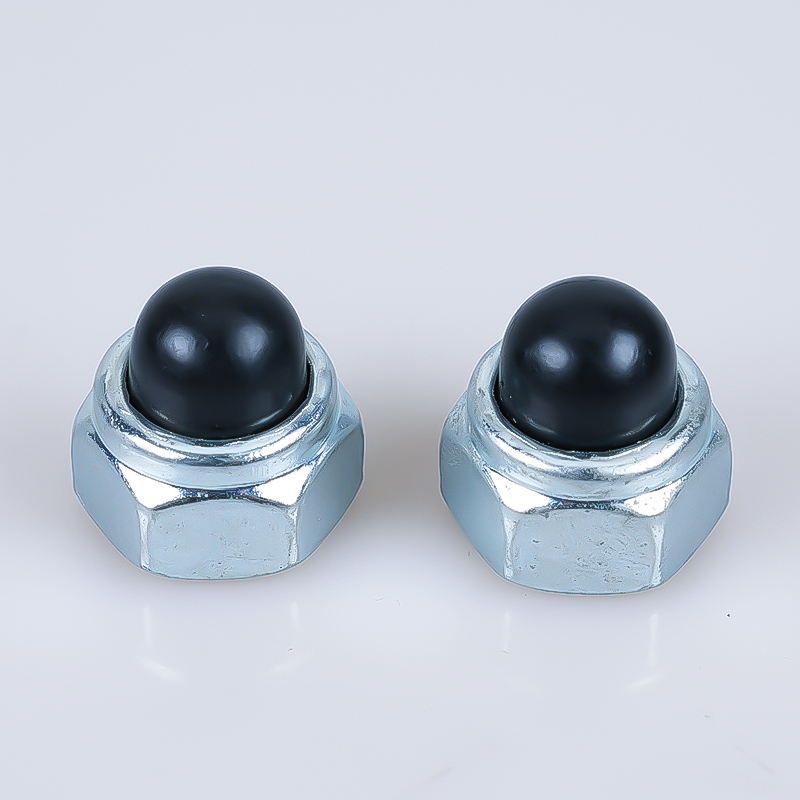

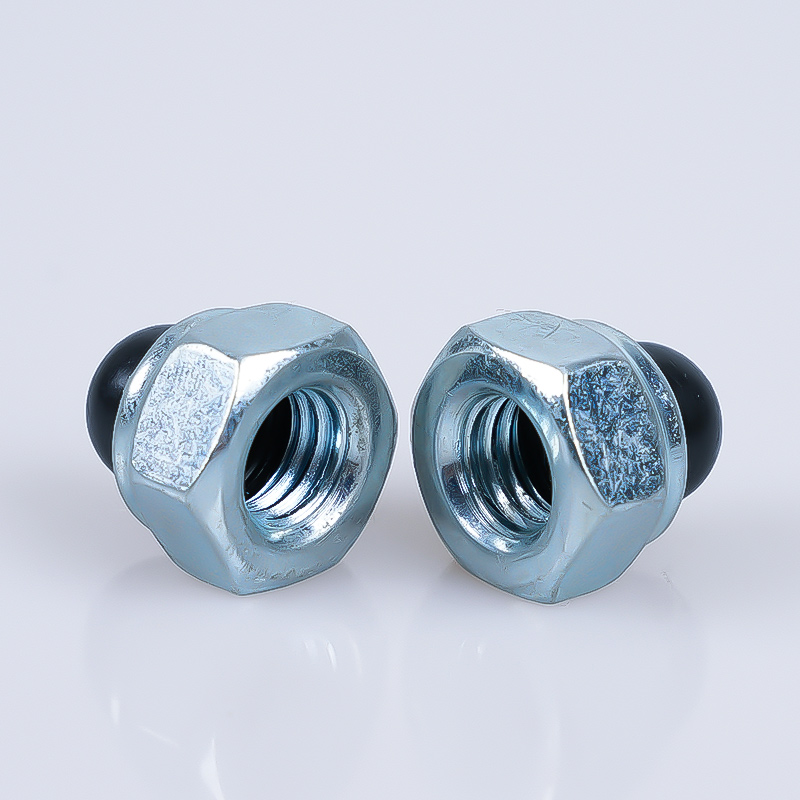

Hexagon Nylon Insert Nuts With Cap DIN 986

STANDARD : DIN 986

SIZE : M4 - M20

MATERIAL : CARBON STEEL

GRADE : 6

FINISH : ZINC PLATED

PACKAGING : BULK PACK | SMALL BOXED

Description Specification Related Products Form

Description

• Nylon Insert Nuts DIN 986.



• Material: Carbon Steel



• Finish: Zinc Plated



• Wide range of sizes to suit most applications.



• Bright zinc plated for increased corrosion resistance.



• For use in many different fastening applications.





DIN 986 Dome in Nylon

Specification





Thread Dia

M4

M5

M6

M8

M10

M12

M14

M16

M20

d

P

Pitch

Coarse

0.7

0.8

1

1.25

1.5

1.75

2

2

2.5

Fine1

/

/

/

1

1

1.5

1.5

1.5

2

Fine2

/

/

/

/

1.25

1.25

/

/

1.5

da

Min.

4

5

6

8

10

12

14

16

20

Max.

4.6

5.75

6.75

8.75

10.8

13

15.1

17.3

21.6

dw

Min.

5.9

6.9

8.9

11.6

14.6

16.6

19.6

22.5

27.7

e

Min.

7.66

8.79

11.05

14.38

17.77

20.03

23.35

26.75

32.95

h1

nominal

5.6

6

7.5

8.9

10.5

13.5

15.5

16.5

21

Max.

5.85

6.25

7.85

9.25

10.9

13.9

15.9

16.9

21.5

Min.

5.35

5.75

7.15

8.55

10.1

13.1

15.1

16.1

20.5

h2

nominal

9.6

10.5

12

14

18.1

22.5

26.4

27.5

35

Max.

9.9

10.85

12.35

14.35

18.5

22.9

26.8

27.9

35.5

Min.

9.3

10.15

11.65

13.65

17.7

22.1

26

27.1

34.5

m

Min.

2.9

4.4

4.9

6.44

8.04

10.37

12.1

14.1

16.9

mw

Min.

2.32

3.52

3.92

5.15

6.43

8.3

9.68

11.28

13.52

r

nominal

2.5

3

3.5

4.6

5.8

6.8

7.8

8.8

10.8

Max.

2.7

3.5

4

5.1

6.3

7.8

8.8

9.8

11.8

Min.

2.3

2.5

3

4.1

5.3

5.8

6.8

7.8

9.8

s

Max.=nominal

7

8

10

13

16

18

21

24

30

Min.

6.78

7.78

9.78

12.73

15.73

17.73

20.67

23.67

29.16

kg/1000pcs

1.4

1.55

3.3

5.3

10.1

18.3

26.1

37.1

111
