STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN6923
SIZE : M3 TO M20
GRADE : 6,8,10（CARBON STEEL）A2-50 A2-70 A4-70
MATERIAL : CARBON STEEL,STAINLESS STEEL
FINISH : SELF COLOUR，ZINC PLATED，HDG，ZINC FLAKE
PACKAGING : BULK PACK | SMALL BOXED

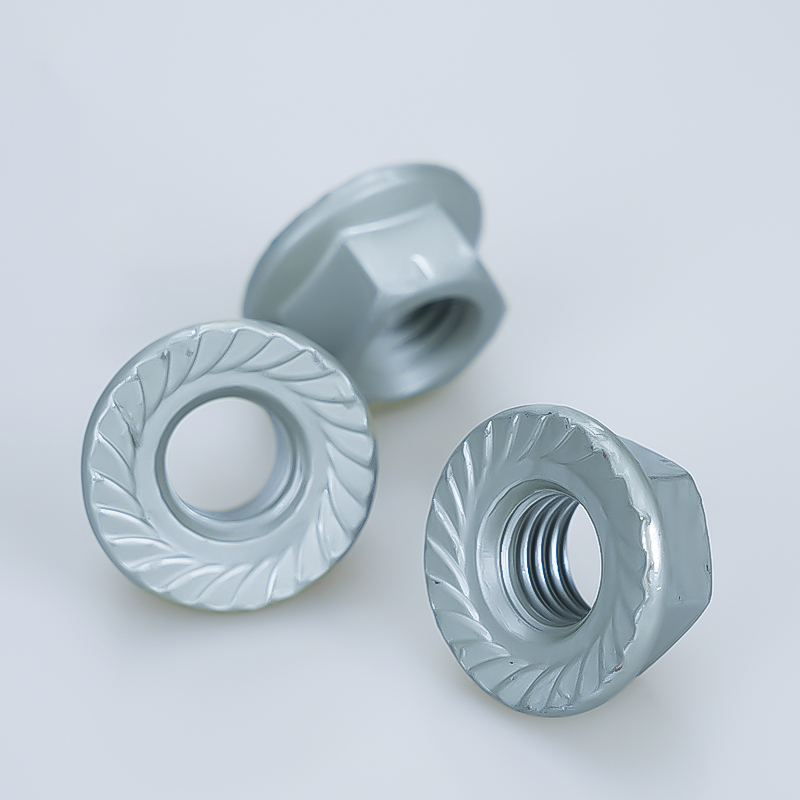

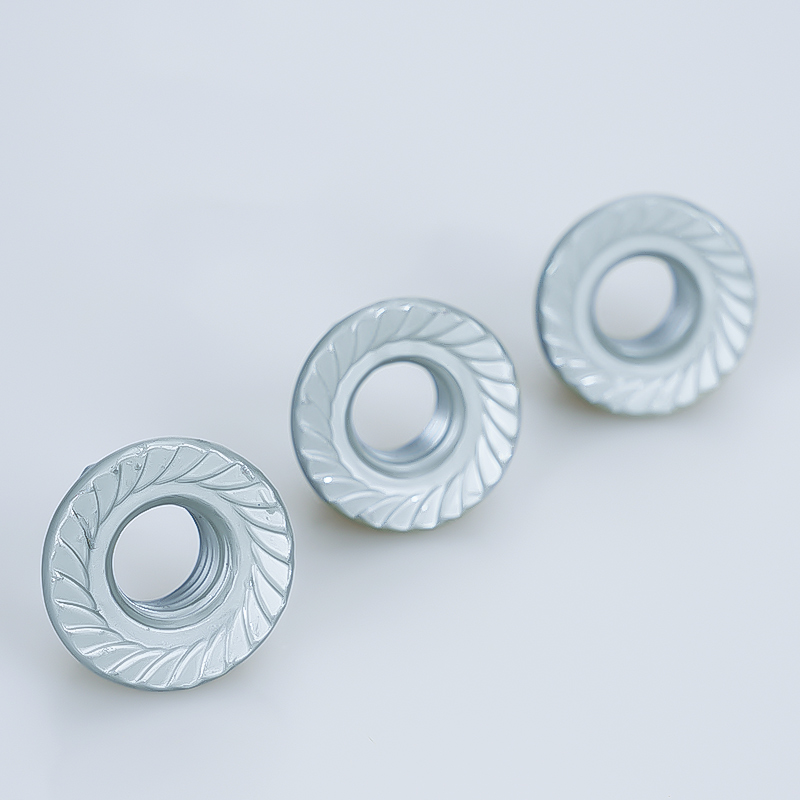

• Hexagon Serrated Flange Nuts DIN6923
• Material: Carbon Steel. Stainless Steel
• Finish: Self Colour | Zinc Plated | HDG | Zinc Flake
• A hexagon nut with an exaggerated flange, which is serrated.
• The serrated flange acts as a washer, spreading the tightening load over a greater area.
•The serrations grip the mating surface once tightened, helping combat vibration.
•DIN 6923
| d1 | d2 max. | h max. | m | s |
| M5 | 11.8 | 6.2 | 4.7 | 8 |
| M6 | 14.2 | 7.3 | 5.7 | 10 |
| M8 | 17.9 | 9.4 | 7.6 | 13 |
| M10 | 21.8 | 11.4 | 9.6 | 15 |
| M12 | 26 | 13.8 | 11.6 | 18 |
•DIN 6923 Small Sizes
|
Size |
A/F(s) |
A/C(e) min |
Height(m) |
Flange(d) |
Flange Thickness(min) |
|
M3 |
5.5-5.32 |
6.01 |
3.4-3.7 |
7–8 |
0.6 |
|
M4 |
7-6.78 |
7.66 |
4.2-4.5 |
9–10 |
0.8 |
