STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 6921
SIZE : Dia. --M5 TO M20, LENGTH - 16 TO 400MM
MATERIAL : CARBON STEEL, STAINLESS STEEL
GRADE : 4.8,5.8,6.8,8.8,10.9,12.9 (CARBON STEEL)
: A2-50, A2-70,A4-70 A4-80 (STAINLESS STEEL）
FINISH : SELF COLOUR，Black Oxide , ZINC PLATED，HDG
PACKAGING : BULK PACK | SMALL BOXED

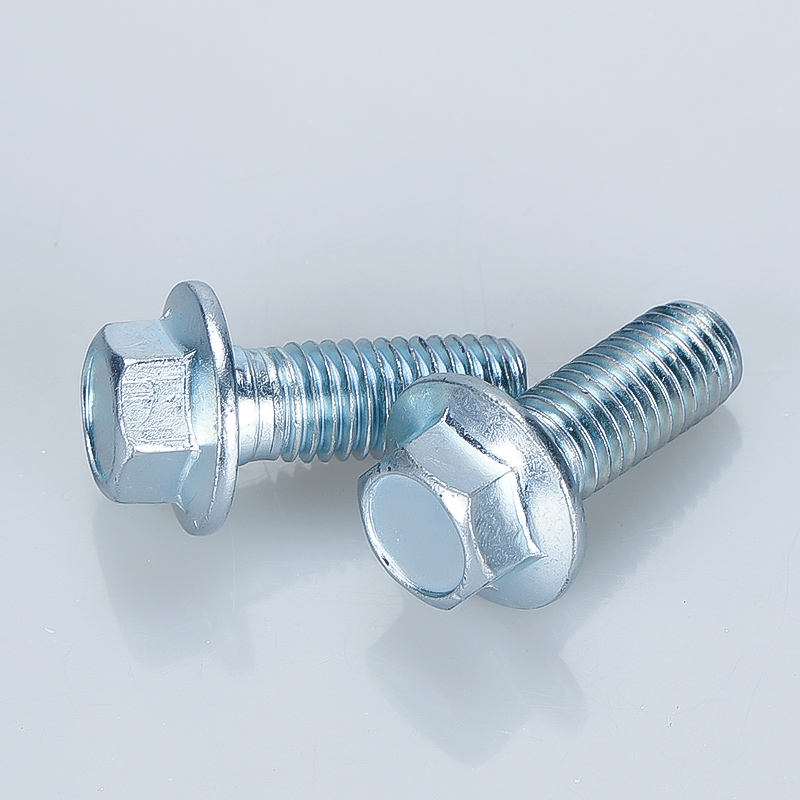

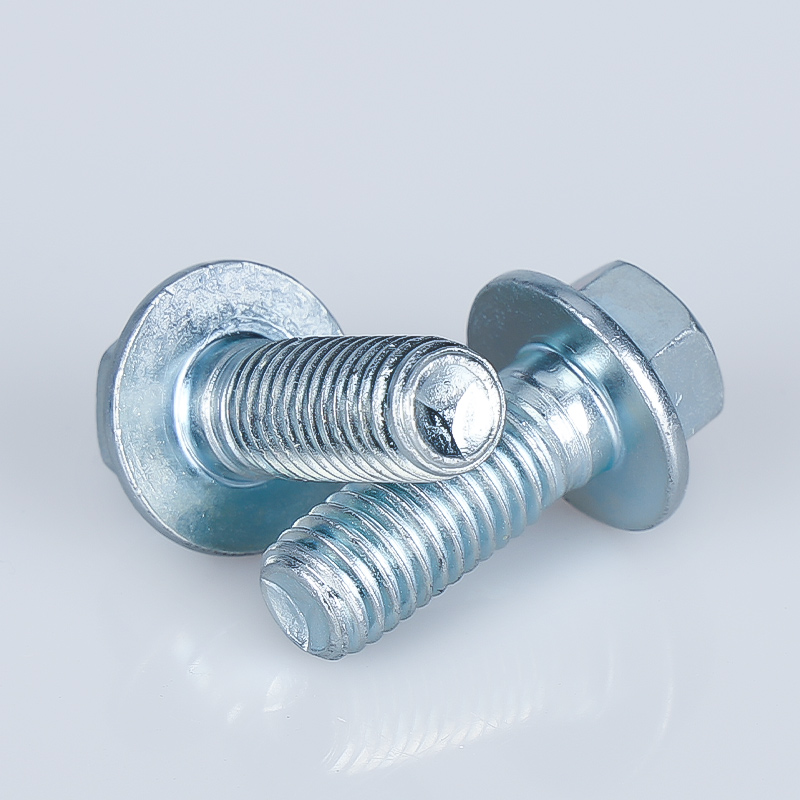

• Hexagon Flange Head Bolts DIN6921
• Material: Carbon Steel, Stainless Steel
• Finish: Self Colour | Black Oxide | Zinc Plated | HDG | Zinc Flake
•The flange head helps spread the load over a greater area
• Original self-tapping anchor with the power to be used on a whole range of construction materials including concrete, brick and stone
It is a one-piece, non-expansion anchor, meaning that it does not require a wall plug or resin, and therefore makes it ideal for close to edge fixing applications
The threaded anchor and self-tapping action allow for safe anchorage, with the substrate becoming the nut to the bolt.
|
|
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M20 |
||||
|
d |
|
|
|
|
|
|
|
|
||||
|
P |
pitch |
corse |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
||
|
fine1 |
/ |
/ |
1 |
1.25 |
1.5 |
1.5 |
1.5 |
1.5 |
||||
|
fine2 |
/ |
/ |
/ |
1 |
1.25 |
/ |
/ |
/ |
||||
|
b |
L≤125 |
|
16 |
18 |
22 |
26 |
30 |
34 |
38 |
46 |
||
|
125＜L≤200 |
|
/ |
/ |
28 |
32 |
36 |
40 |
44 |
52 |
|||
|
L＞200 |
|
/ |
/ |
/ |
/ |
/ |
/ |
57 |
65 |
|||
|
c |
min. |
|
1 |
1.1 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
3 |
||
|
da |
A type |
max. |
5.7 |
6.8 |
9.2 |
11.2 |
13.7 |
15.7 |
17.7 |
22.4 |
||
|
B type |
max. |
6.2 |
7.4 |
10 |
12.6 |
15.2 |
17.7 |
20.7 |
25.7 |
|||
|
dc |
max. |
|
11.8 |
14.2 |
18 |
22.3 |
26.6 |
30.5 |
35 |
43 |
||
|
ds |
max. |
|
5 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
||
|
min. |
|
4.82 |
5.82 |
7.78 |
9.78 |
11.73 |
13.73 |
15.73 |
19.67 |
|||
|
du |
min. |
|
5.5 |
6.6 |
9 |
11 |
13.5 |
15.5 |
17.5 |
22 |
||
|
dw |
min. |
|
9.8 |
12.2 |
15.8 |
19.6 |
23.8 |
27.6 |
31.9 |
39.9 |
||
|
e |
min. |
|
8.71 |
10.95 |
14.26 |
16.5 |
17.62 |
19.86 |
23.15 |
29.87 |
||
|
f |
max. |
|
1.4 |
2 |
2 |
2 |
3 |
3 |
3 |
4 |
||
|
k |
max. |
|
5.4 |
6.6 |
8.1 |
9.2 |
11.5 |
12.8 |
14.4 |
17.1 |
||
|
k1 |
min. |
|
2 |
2.5 |
3.2 |
3.6 |
4.6 |
5.1 |
5.8 |
6.8 |
||
|
r1 |
min. |
|
0.25 |
0.4 |
0.4 |
0.4 |
0.6 |
0.6 |
0.6 |
0.8 |
||
|
r2 |
max. |
|
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.9 |
1 |
1.2 |
||
|
r3 |
min. |
|
0.1 |
0.1 |
0.15 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
||
|
r4 |
≈ |
|
3 |
3.4 |
4.3 |
4.3 |
6.4 |
6.4 |
6.4 |
8.5 |
||
|
s |
max. |
|
8 |
10 |
13 |
15 |
16 |
18 |
21 |
27 |
||
|
min. |
|
7.78 |
9.78 |
12.73 |
14.73 |
15.73 |
17.73 |
20.67 |
26.67 |
|||
|
t |
max. |
|
0.15 |
0.2 |
0.25 |
0.3 |
0.35 |
0.45 |
0.5 |
0.65 |
||
|
min. |
|
0.05 |
0.05 |
0.1 |
0.15 |
0.15 |
0.2 |
0.25 |
0.3 |
|||
