STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

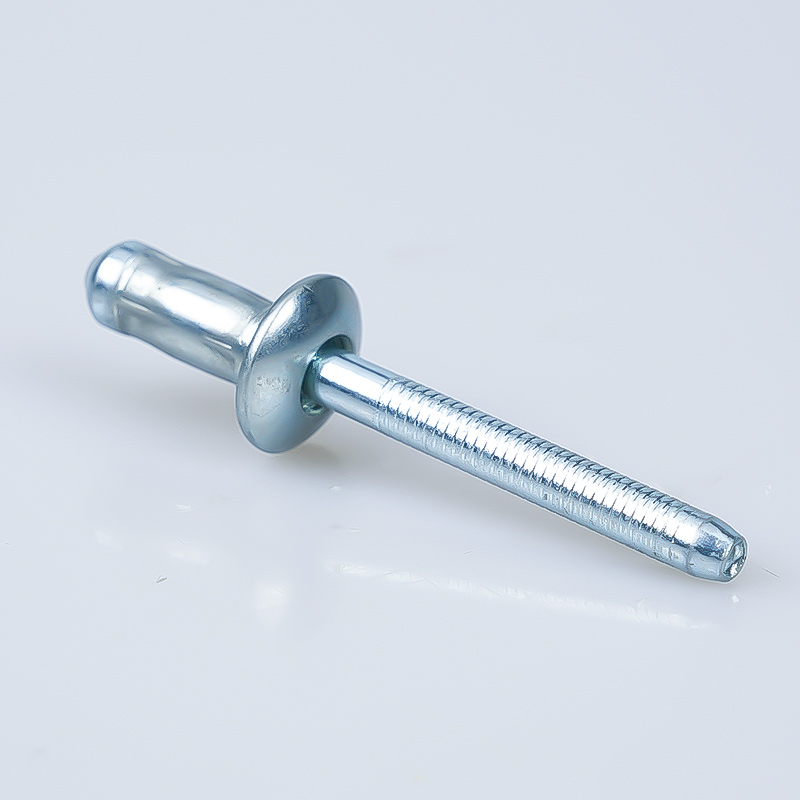

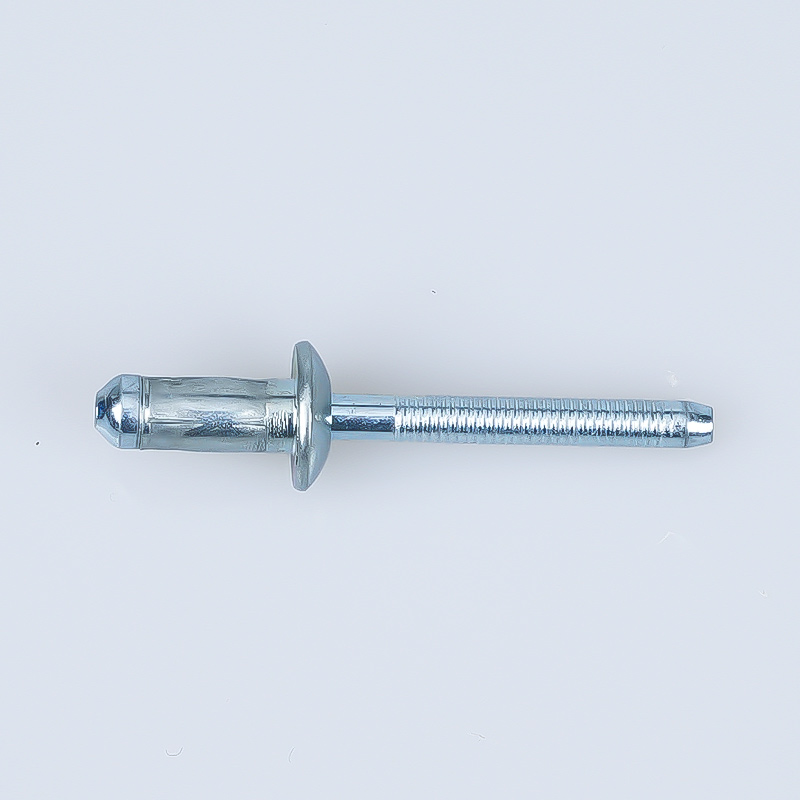

SIZE : DIA 4.8MM TO 7.8MM LENGTH 9MM TO 32.5MM
MATERIAL : BODY:CARBON STEEL10B21;MANDREL:CARBON STEEL SWCH45K
FINISH : ZINC PLATED
PACKAGING : BULK PACK | SMALL BOXED
High shearing strength and tensile strength which can provide the solid and vibration resistant connection.
Provide the large blind side bearing area to be close to rear plate.
The mandrel pressure bearing load/riveting load are dispersed on the blind side sheets which makes it to be ideally used in sheet.
Good hole filling which can provide supplementary riveting for the irregular and over tolerance hole, oval or malposition holes.
The retained mandrel can avoid damage, electric leakage or ma-rowak sound and other problems caused by falling off of the mandrel.
|
L(Max) |
Grip Range |
Rivet Size (D) |
Head Dia[H](Max) |
Head Height[E](Max) |
Mandrel Dia[W] (Max) |
Mandrel Reveal[P] (Min) |
Hole Dia |
Typical Ultimate Strength |
|||
|
Tensile ref. |
Shear ref. |
Breaking Load (Max) |
Retention Load(Min) |
||||||||
|
9 |
1.5-3.5 |
4.8 |
10.2 |
2.5 |
3.4 |
27.0 |
4.9-5.1 |
4400N |
6000N |
9000N |
1000N |
|
11.5 |
3.5-6.0 |
7500N |
|||||||||
|
14 |
6.0-8.5 |
7800N |
|||||||||
|
16.5 |
8.5-11.0 |
||||||||||
|
19 |
11.0-13.5 |
||||||||||
|
9 |
1.5-3.5 |
6.4 |
13.4 |
3.5 |
4.2 |
27.0 |
6.6-6.8 |
7920N |
7700N |
15000N |
1800N |
|
10.5 |
2.0-4.5 |
9450N |
|||||||||
|
12.5 |
3.5-6.5 |
10800N |
|||||||||
|
14.5 |
5.5-8.5 |
||||||||||
|
16.5 |
7.5-10.5 |
12500N |
|||||||||
|
18.5 |
9.5-12.5 |
||||||||||
|
20.5 |
11.0-14.0 |
||||||||||
|
22.5 |
13.0-16.0 |
||||||||||
|
24.5 |
14.5-18.0 |
||||||||||
|
26.5 |
16.5-20.0 |
||||||||||
|
28.5 |
18.5-22.0 |
||||||||||
|
30.5 |
20.5-24.0 |
||||||||||
|
32.5 |
22.5-26.0 |
||||||||||
|
13.5 |
4.0-7.0 |
7.8 |
18.0 |
4.2 |
5.2 |
27.0 |
8.1-8.3 |
11500N |
15500N |
23000N |
2500N |
|
16.5 |
7.0-10.0 |
18000N |
|||||||||
|
19.5 |
10.0-13.0 |
||||||||||
|
22.5 |
13.0-16.0 |
||||||||||
Send us a message and we'll get back to you as quickly as possible.
Chat Now
Enquire for Prices
