STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

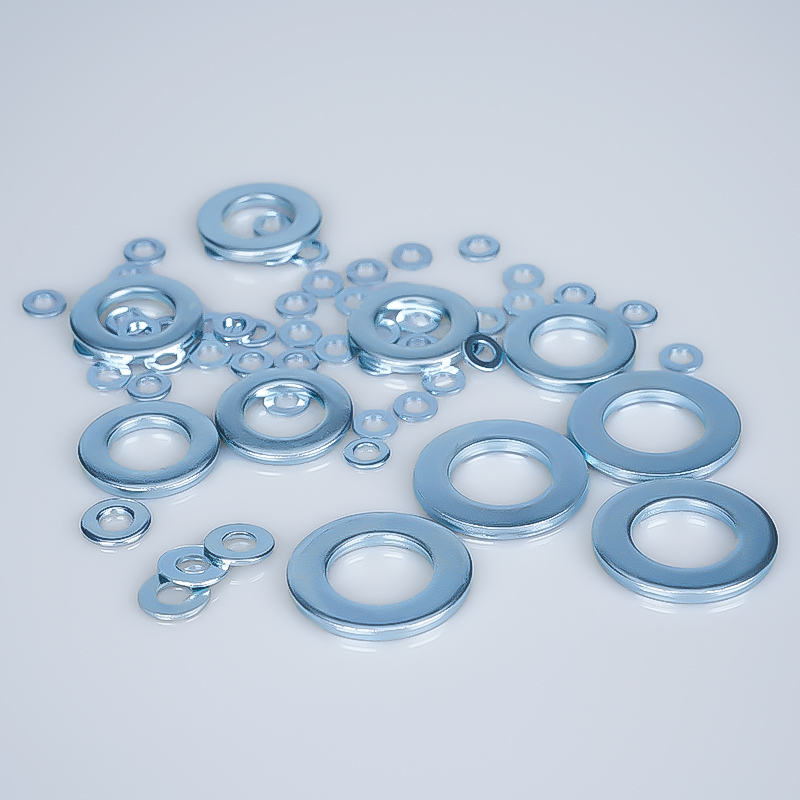

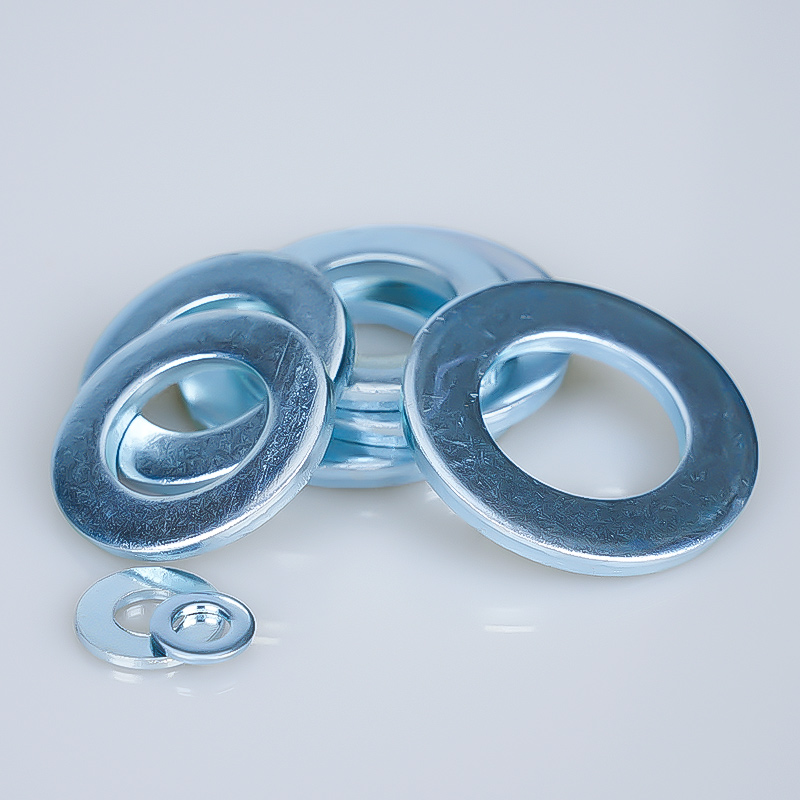

STANDARD : EN 14399-6
SIZE : M2.5 TO M100
MATERIAL : CARBON STEEL
FINISH : PLAIN, ZINC PLATED,HDG
PACKAGING : BULK PACK | SMALL BOXED

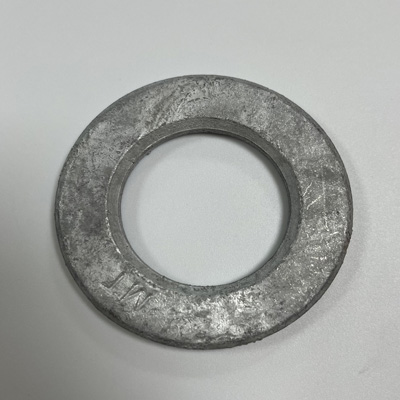

• Used with threaded fasteners (for example a bolt and a nut), designed to increase the load distribution.
• Hardened, so that they can be used in very high load applications.
• Chamfered washer
• Conforms to EN 14399-6
• Conforms to DIN 6916
• Hardness: 300-370 HV
• HDG finish offers great resistance to corrosion.
|
Size |
M12 |
(M14) |
M16 |
(M18) |
M20 |
M22 |
M24 |
M27 |
M30 |
M36 |
|
|

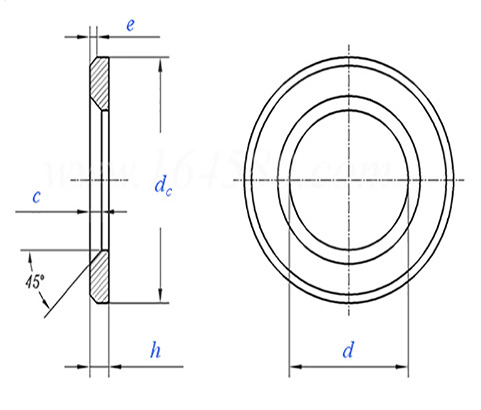

d |
max. |
13.27 |
15.27 |
17.27 |
19.33 |
21.33 |
23.33 |
25.33 |
28.52 |
31.62 |
37.62 |
|
min. |
13 |
15 |
17 |
19 |
21 |
23 |
25 |
28 |
31 |
37 |
|
|
dc |
max. |
24 |
28 |
30 |
34 |
37 |
39 |
44 |
50 |
56 |
66 |
|
min. |
23.48 |
27.48 |
29.48 |
33.38 |
36.38 |
38.38 |
43.38 |
49 |
54.8 |
64.8 |
|
|
h |
nom. |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
5 |
5 |
6 |
|
max. |
3.3 |
3.3 |
4.3 |
4.3 |
4.3 |
4.3 |
4.3 |
5.6 |
5.6 |
6.6 |
|
|
min. |
2.7 |
2.7 |
3.7 |
3.7 |
3.7 |
3.7 |
3.7 |
4.4 |
4.4 |
5.4 |
|
|
e |
min. =nom. |
0.5 |
0.5 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
1 |
1 |
1.25 |
|
max. |
1 |
1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
2 |
2 |
2.5 |
|
|
c |
min. |
1.6 |
1.6 |
1.6 |
2 |
2 |
2 |
2 |
2.5 |
2.5 |
2.5 |
|
max. |
1.9 |
1.9 |
1.9 |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
|
