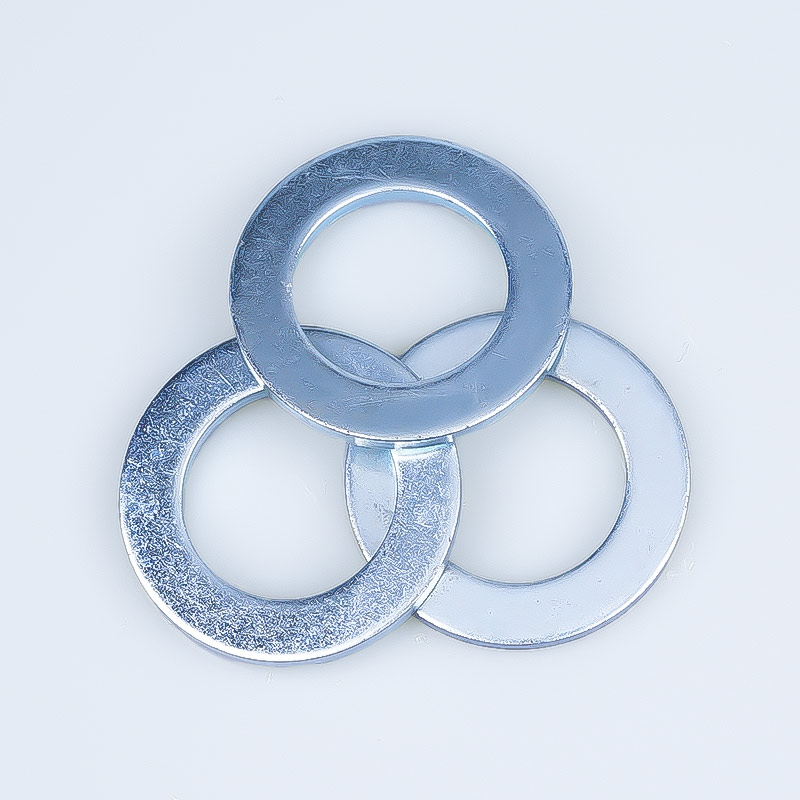

Flat Round Washer Small Series ISO 7092

STANDARD : ISO 7092

SIZE : M2.5 TO M100

MATERIAL : CARBON STEEL

FINISH : ZINC PLATED, ZINC FLAKE

PACKAGING : BULK PACK | SMALL BOXED

Description Specification Related Products Form

Description

• Conforms to ISO 7092



• Galvanised finish offers great resistance to corrosion



• Used with threaded fasteners (for example a bolt and a nut), designed to increase the load distribution

Specification

dia

Φ1.6

Φ2

Φ2.5

Φ3

(Φ3.5)

Φ4

Φ5

Φ6

Φ8

Φ10

Φ12

d

min.=nominal

1.7

2.2

2.7

3.2

3.7

4.3

5.3

6.4

8.4

10.5

13

max.

1.84

2.34

2.84

3.38

3.88

4.48

5.48

6.62

8.62

10.77

13.27

dc

max.=nominal

3.5

4.5

5

6

7

8

9

11

15

18

20

min.

3.2

4.2

4.7

5.7

6.64

7.64

8.64

10.57

14.57

17.57

19.48

h

nominal

0.3

0.3

0.5

0.5

0.5

0.5

1

1.6

1.6

1.6

2

max.

0.35

0.35

0.55

0.55

0.55

0.55

1.1

1.8

1.8

1.8

2.2

min.

0.25

0.25

0.45

0.45

0.45

0.45

0.9

1.4

1.4

1.4

1.8

dia

(Φ14)

Φ16

(Φ18)

Φ20

(Φ22)

Φ24

(Φ27)

Φ30

(Φ33)

Φ36

d

min=nominal

15

17

19

21

23

25

28

31

34

37

max.

15.27

17.27

19.33

21.33

23.33

25.33

28.33

31.39

34.62

37.62

dc

max=nominal

24

28

30

34

37

39

44

50

56

60

min.

23.48

27.48

29.48

33.38

36.38

38.38

43.38

49.38

54.8

58.8

h

nominal

2.5

2.5

3

3

3

4

4

4

5

5

max.

2.7

2.7

3.3

3.3

3.3

4.3

4.3

4.3

5.6

5.6

min.

2.3

2.3

2.7

2.7

2.7

3.7

3.7

3.7

4.4

4.4
