STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

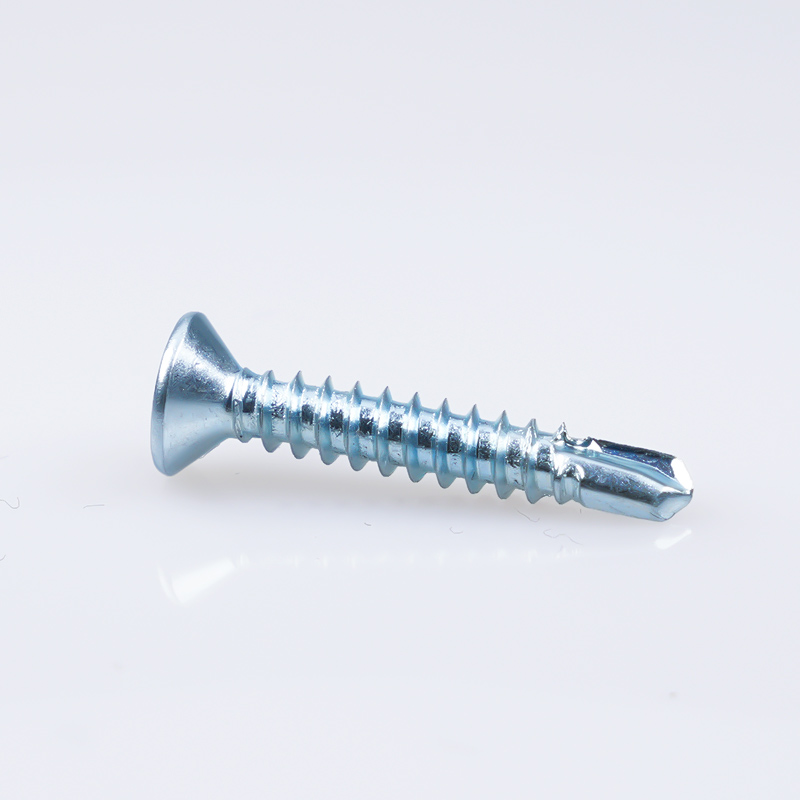

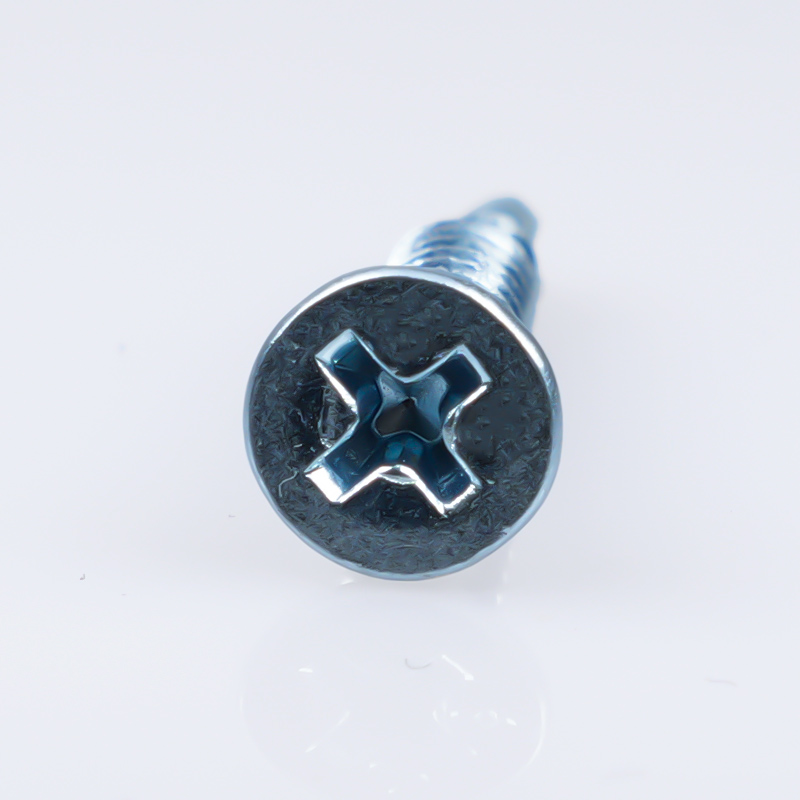

STANDARD : DIN 7504P
SIZE : DIA 3.5MM TO 6.3MM LENGTH 9.5MM TO 250MM
MATERIAL : SUS410 SUS304 SUS316
FINISH : PLAIN
PACKAGING : BULK PACK | SMALL BOXED
Standard: DIN7504P ISO15482:1999
Material: SUS410 SUS304 SUS316
|
Size |
A |
K(max) |
P |
D |
L |
X |
|
|
Point NO. |
Drilling capacity |
||||||
|
(#6)3.5 |
6.44-6.80 |
2.1 |
1.3 |
3.35-3.53 |
9.5-51 |
NO.2(3.0) |
0.9-2.1 |
|
NO.3(3.7) |
0.9-2.8 |
||||||
|
(#7)3.9 |
7.14-7.50 |
2.3 |
1.3 |
3.73-3.90 |
9.5-51 |
NO.2(3.0) |
0.9-2.1 |
|
NO.3(3.7) |
0.9-2.8 |
||||||
|
(#8)4.2 |
7.74-8.10 |
2.5 |
1.4 |
4.04-4.22 |
13-76 |
NO.2(3.9) |
0.9-2.8 |
|
NO.3(4.7) |
0.9-3.6 |
||||||
|
(#10)4.8 |
9.14-9.50 |
3 |
1.6 |
4.62-4.80 |
13-120 |
NO.2(4.8) |
2.0-3.6 |
|
NO.3(5.7) |
2.0-4.5 |
||||||
|
(#12)5.5 |
10.37-10.80 |
3.4 |
1.8 |
5.28-5.46 |
16-250 |
NO.2(5.9) |
2.5-4.5 |
|
NO.3(6.7) |
2.5-5.3 |
||||||
|
(#14)6.3 |
11.97-12.40 |
3.8 |
1.8 |
6.03-6.25 |
16-250 |
NO.2(7.0) |
2.8-5.3 |
|
NO.3(8.0) |
2.8-6.3 |
||||||
