STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 603 C/W HEX NUTS DIN 934
SIZE : M6 - M24
MATERIAL : CARBON STEEL
GRADE : 4.8 , 5.8 , 6.8 , 8.8 , 10.9(CARBON STEEL)
FINISH : SELF COLOUR, ZINC PLATED, HDG, ZINC FLAKE
PACKAGING : BULK PACK | SMALL BOXED

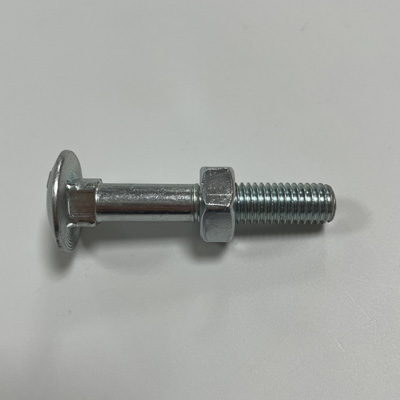

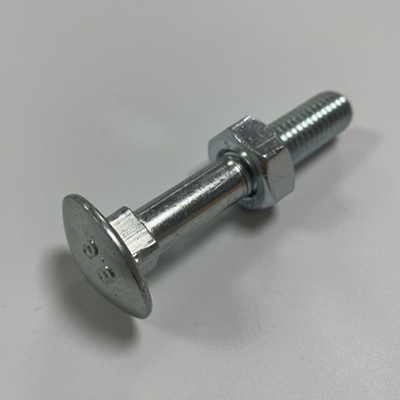

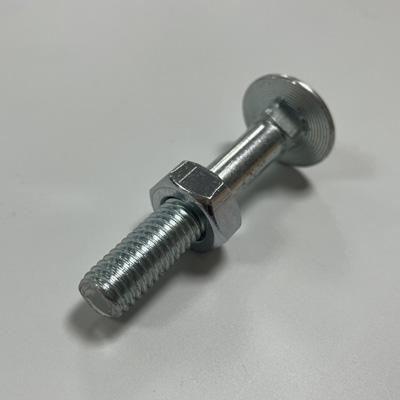

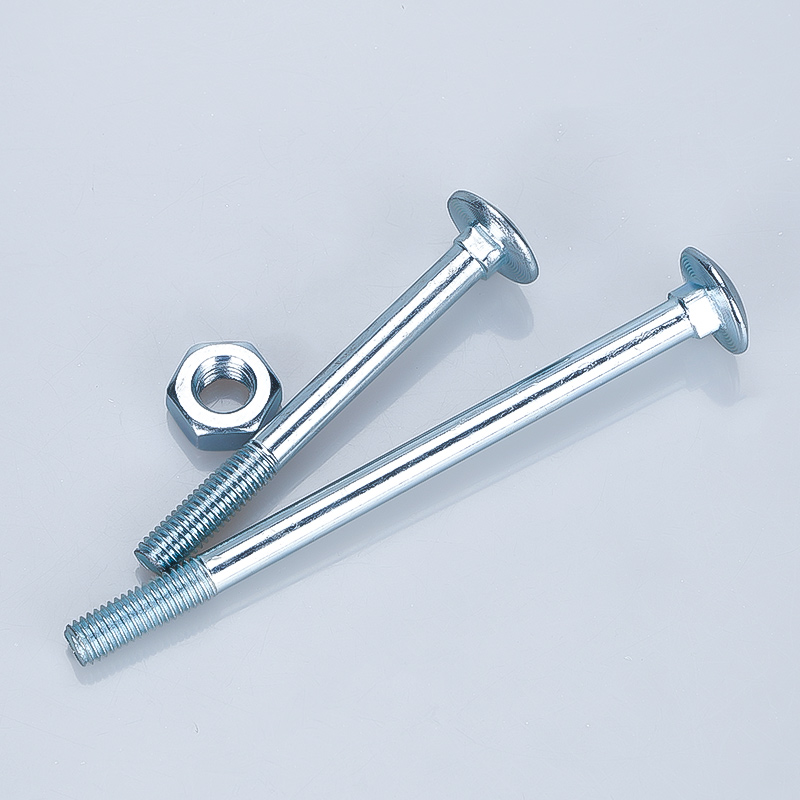

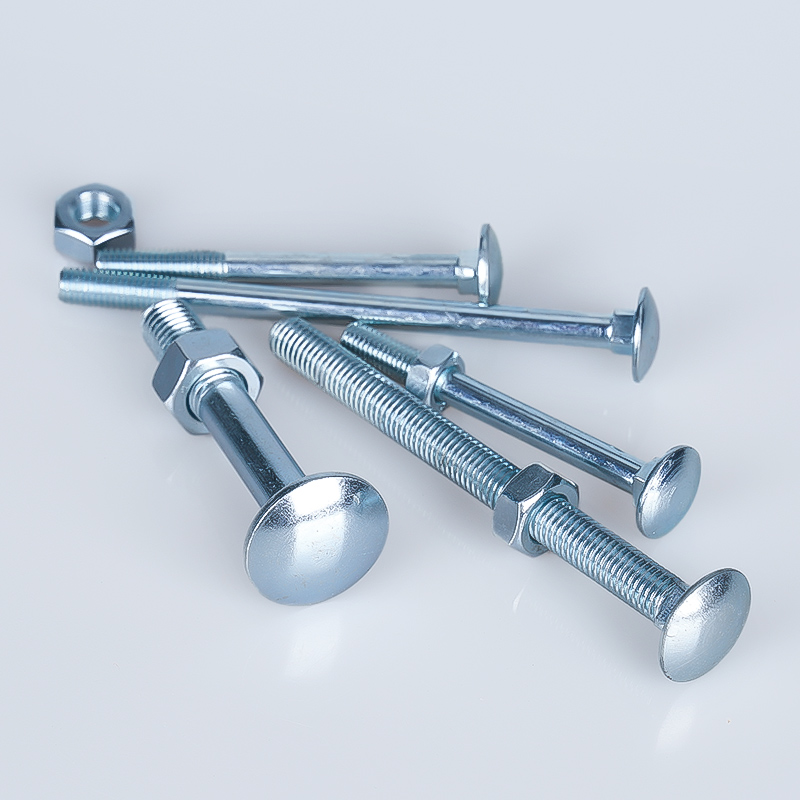

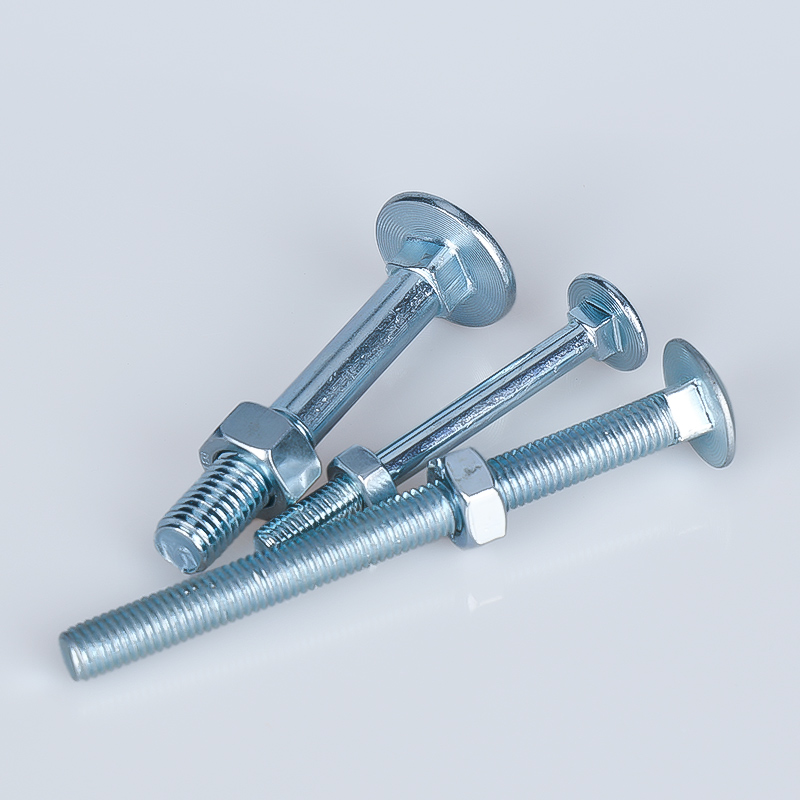

• Cup Square Bolts DIN603 C/W Hex Nuts DIN934
• Material: Carbon Steel
• Finish: Self Colour, Zinc Plated,HDG,Zinc Flake
•Galvanised finish offers great resistance to corrosion
|

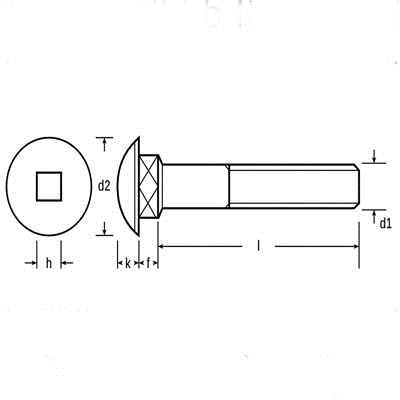

d1 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
|
pitch |
1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
|
d2 max. |
16.55 |
20.65 |
24.65 |
30.65 |
38.8 |
46.8 |
|
k max. |
3.88 |
4.88 |
5.38 |
6.95 |
8.95 |
11.05 |
|
f max. |
4.6 |
5.6 |
6.6 |
8.75 |
12.9 |
15.9 |
|
h min. |
6.48 |
8.58 |
10.58 |
12.7 |
16.7 |
20.84 |
| d 1 | m max. | e | s | d 1 | m max. | e | s |
| M 2 | 1.48 | 4 | M 8 | 6.5 | 14.38 | 13 | |
| M2.5 | 1.88 | 5 | M10 | 8 | 18.9 | 17 | |
| M 3 | 2.4 | 5.5 | M12 | 10 | 21.1 | 19 | |
| M3.5 | 2.68 | 6 | M14 | 11 | 24.49 | 22 | |
| M 4 | 3.2 | 7.66 | 7 | M16 | 13 | 26.79 | 24 |
| M 5 | 4 | 8.79 | 8 | M18 | 14.65 | 27 | |
| M 6 | 5 | 11.05 | 10 | M20 | 16 | 32.95 | 30 |
| M 7 | 5.5 | 12.12 | 11 |
