STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

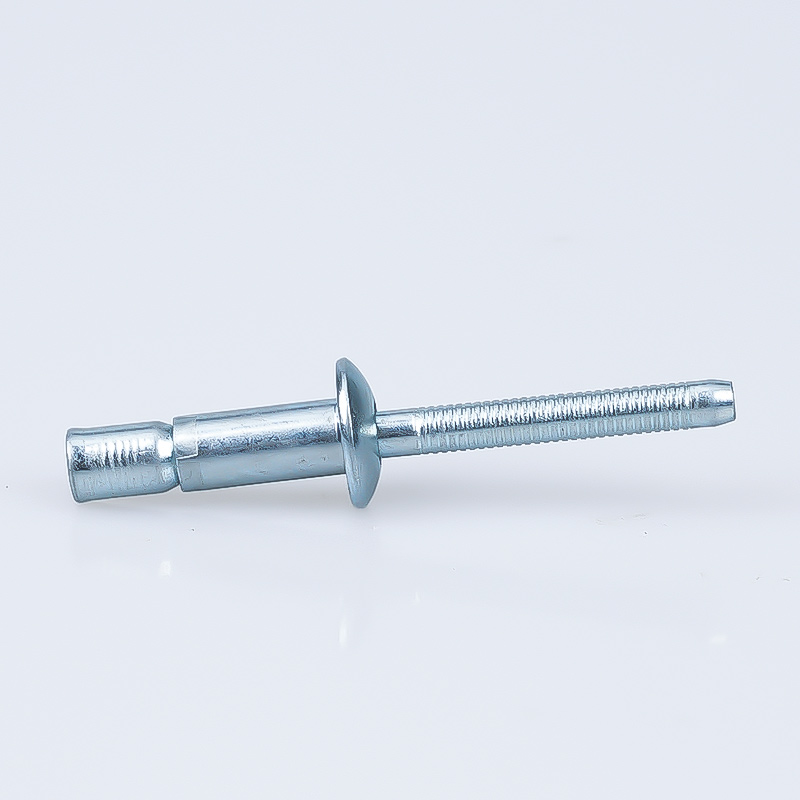

SIZE : DIA 4.8MM TO 6.4MM LENGTH 10MM TO 19MM
MATERIAL : BODY:CARBON STEEL 10B21;MANDREL:CARBON STEEL SWCH45K
FINISH : ZINC PLATED
PACKAGING : BULK PACK | SMALL BOXED
Excelleirs hole filling property and vibration resistant effect are realized by rapidly expanded rivet body, which can provide sup- plementary riveting for the irregular and over tolerance holes, oval or malposition holes.
Good large-gap closing ability and strong clamp force of sheets.
Mechanical mandrel locking mechanism which avoids damage, electric leakage or marowak sound caused by the loosening of mandrel.
Large riveting grip range.
High shear and tensile strength.
Visual external locking system which is convenient for rapidly and simply checking whether the installation is in place.
|
Size |
D |
E(Max) |
F(Max) |
H(Max) |
P(Min) |
W(Max) |
Hole Dia |
Grip Range |
Tensile ref. |
Shear ref. |
Breaking Load(Max) |
Retention Load(Min) |
|
4.8 X 12 |
4.7-4.88 |
2.2 |
20 |
8.8 |
27 |
3.1 |
4.9-5.1 |
3.2-8.3 |
5110N |
6440N |
7500N |
600N |
|
4.8 X16 |
26.5 |
3.2-12.2 |
||||||||||
|
6.4X16 |
6.4-6.58 |
2.4 |
26.3 |
10.1 |
27 |
4.1 |
6.7-7.0 |
3.2-12.1 |
10450N |
11780N |
12500N |
1100N |
|
6.4X22 |
34.5 |
3.2-16.0 |
