STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985
SIZE : M3 - M48
MATERIAL : Carbon Steel,Stainless Steel
GRADE : 6, 8, 10, A2, A4
FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...
PACKAGING : BULK PACK | SMALL BOXED

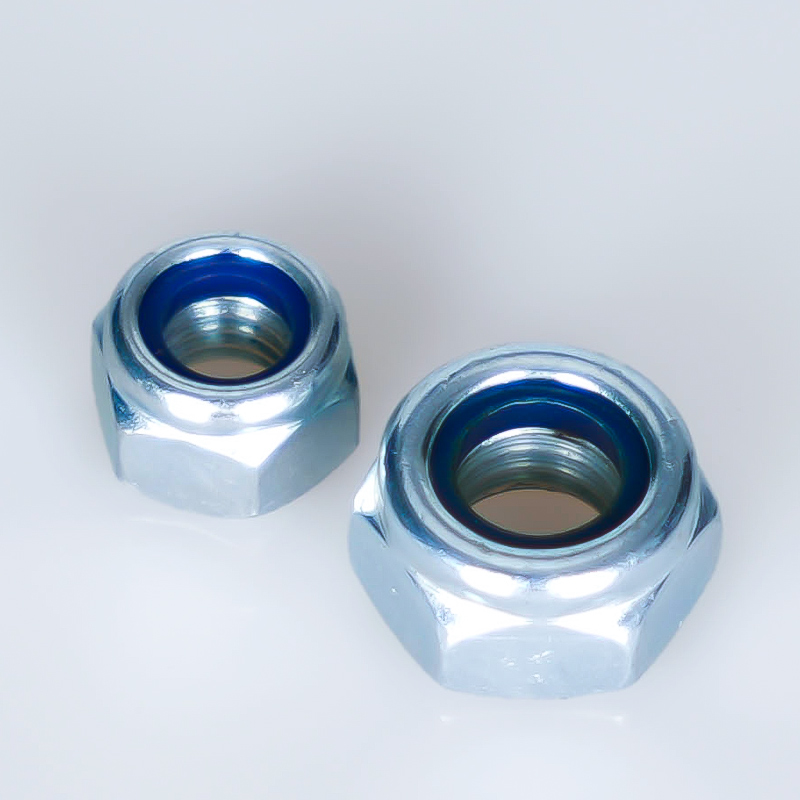

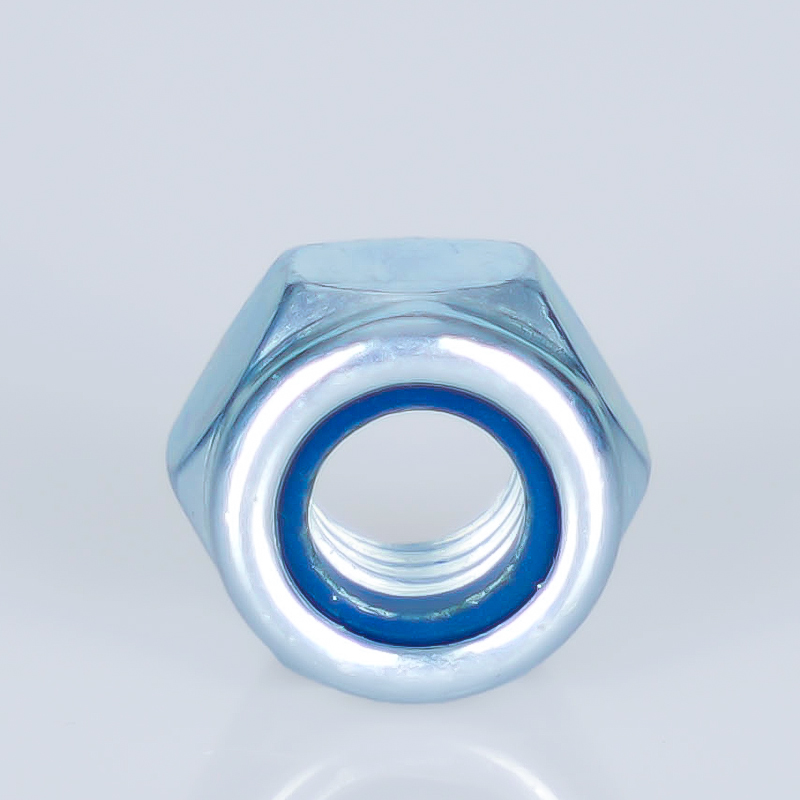

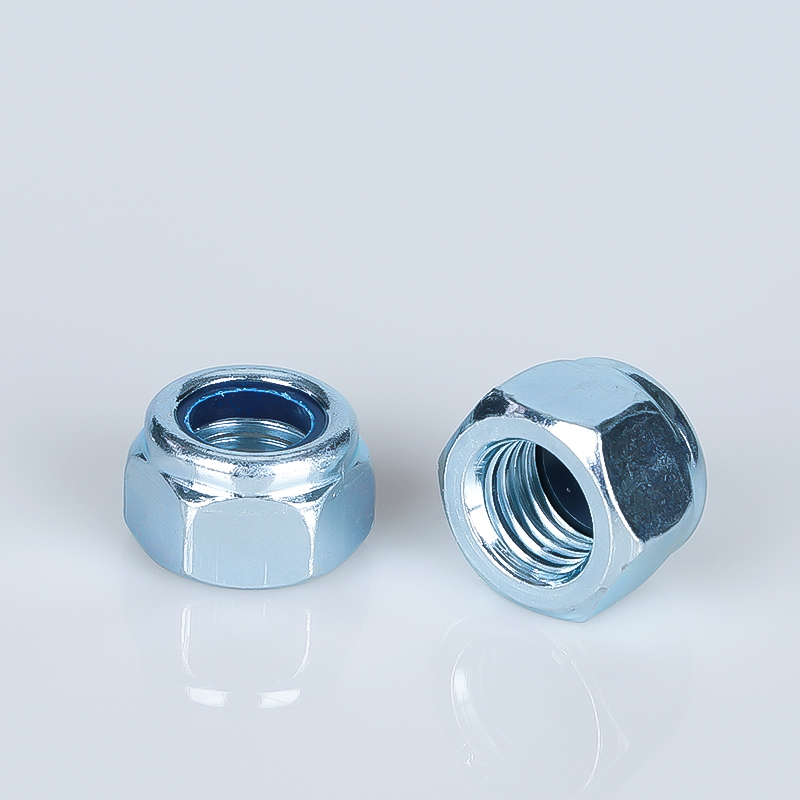

Nylon Insert Nuts DIN 985
• Material: Carbon Steel | Stainless Steel
• Finish: PLAIN | Zinc Plated Cr3
• Wide range of sizes to suit most applications.
• Bright zinc plated for increased corrosion resistance.
• For use in many different fastening applications.
|
d 1 |
h max. |
m |
s |
e max. |
d 1 |
h max. |
m |
s |
e max. |
d 1 |
h max. |
m |
s |
e max. |
|
M3 |
4 |
2.4 |
5.5 |
6.01 |
M14 |
14 |
9.5 |
22 |
24.49 |
M30 |
30 |
19 |
46 |
50.85 |
|
M4 |
5 |
2.9 |
7 |
7.66 |
M16 |
16 |
10.5 |
24 |
26.75 |
M33 |
33 |
22 |
50 |
55.37 |
|
M5 |
5 |
3.2 |
8 |
8.79 |
M18 |
18.5 |
13 |
27 |
29.56 |
M36 |
36 |
25 |
55 |
60.79 |
|
M6 |
6 |
4 |
10 |
11.05 |
M20 |
20 |
14 |
30 |
32.95 |
M42 |
42 |
29 |
60 |
72.09 |
|
M8 |
8 |
5.5 |
13 |
14.38 |
M22 |
22 |
15 |
34 |
35.03 |
M48 |
48 |
36 |
69 |
82.06 |
|
M10 |
10 |
6.5 |
17 |
18.9 |
M24 |
24 |
15 |
36 |
39.55 |
– |
– |
– |
– |
– |
|
M12 |
12 |
8 |
19 |
21.1 |
M27 |
27 |
17 |
41 |
45.2 |
– |
– |
– |
– |
– |
